High ratings IP55 standard 2HP Power Switch

  • high ratings with TUV approvals
  • Industry Standard 22mm*30mm Cutout
  • Internal Dust and Water Protection to IP55
  • Used widely
  • Function many choices
  1. Off-On
  2. On-On
  3. Off-(On)
  4. On-(On)
  5. On-Off-On
  6. (On)-Off-(On)
Availability:
Quantity:
Inquire Add to Basket

  • KR2-16-223

  • KARA

  • 8536500090

Product Attributes

Model No. KR2-16 Brand KARA
Usage Electrical Appliance Standard Standard
Lamp Without Lamp Color Black
Certification RoHS Condition New
Dimenstion 22*30 Certificate CQC


Supply Ability & Additional Information

Packaging CARTON Productivity 500000PCS/MONTH
Transportation Ocean,Land,Air Place of Origin NINGBO,CHINA
Supply Ability 500000PCS/MONTH Certificate ROHS,TUV
HS Code 85365000 Payment Type L/C,T/T,Paypal,Western Union
Incoterm FOB,CIF


Packaging & Delivery
Selling Units Piece/Pieces Package Type CARTON



Specification

Rating 20A 125/250VAC;1.5HP 125/250VAC
Operating Temperature -25~85ºC
Contact Resistance 50mΩ Max
Insulation Resistance 500MΩ Min
Electrical Life 10000cycles
Applicable Standard IEC61058-1


Material list

Contact Leg Brass T=0.8mm
Contact Silver alloy
Terminals Brass T=0.8mm
Case PA66

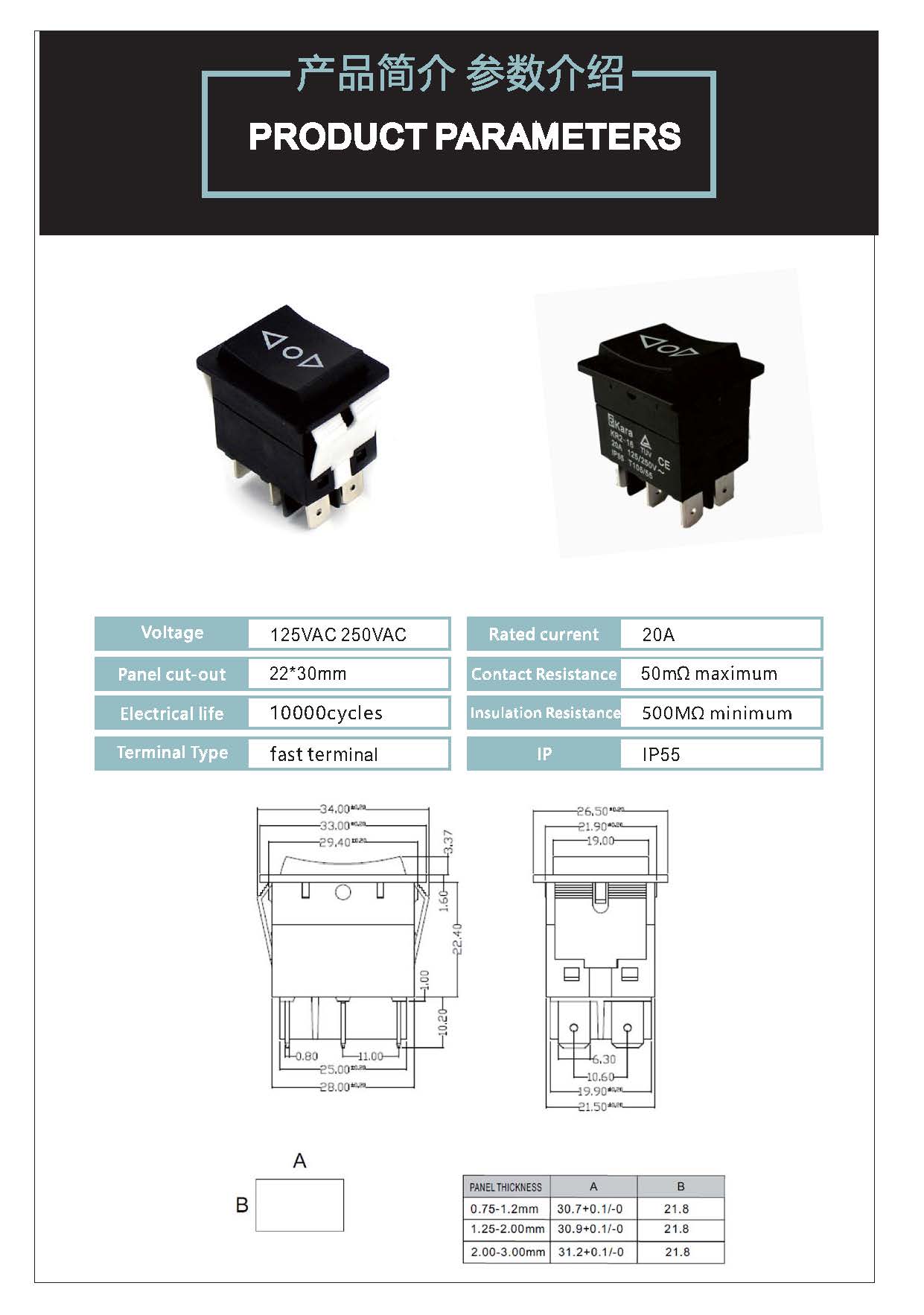

Drawing

KR2-16

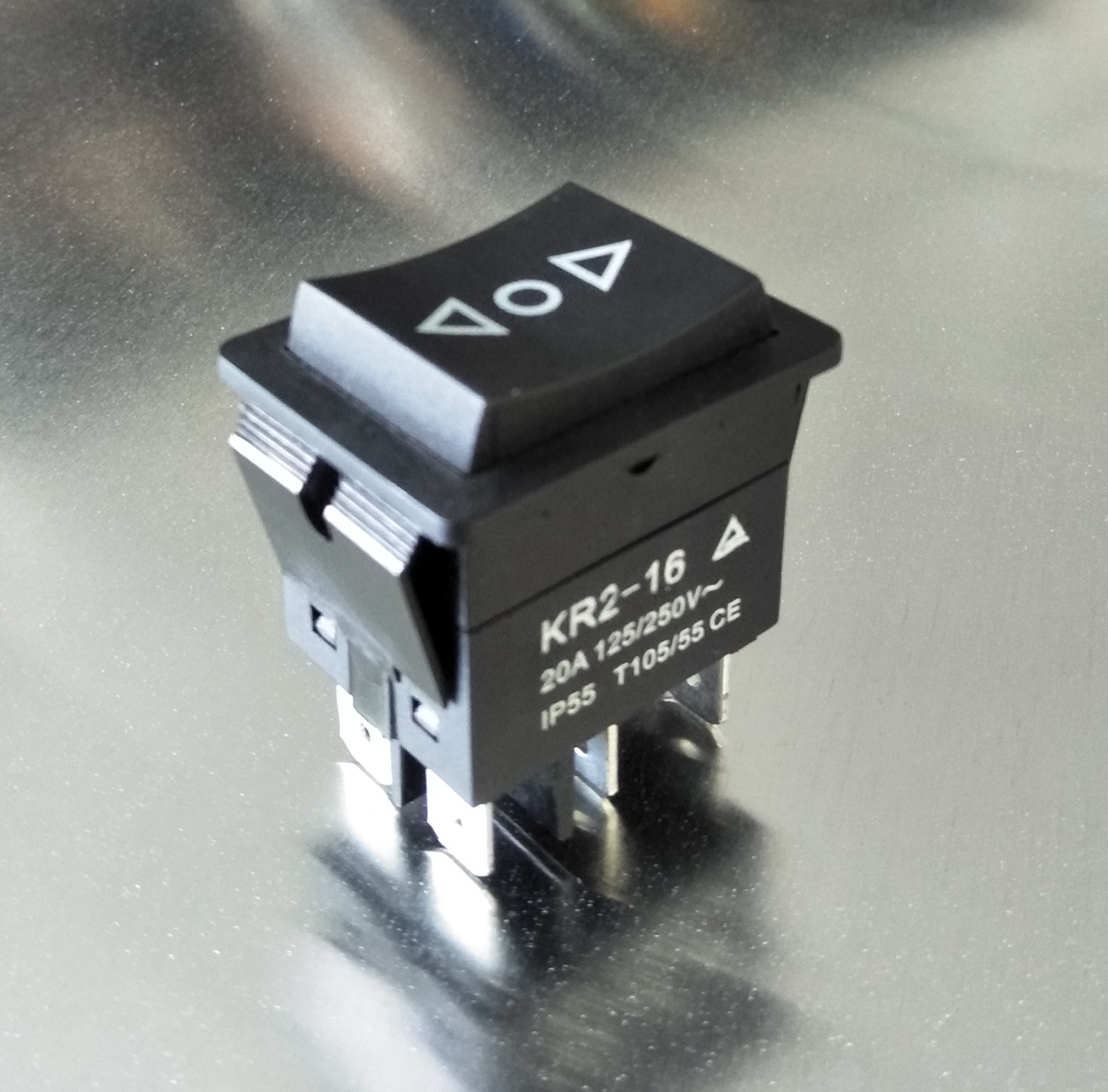

QQ图片20180627143733

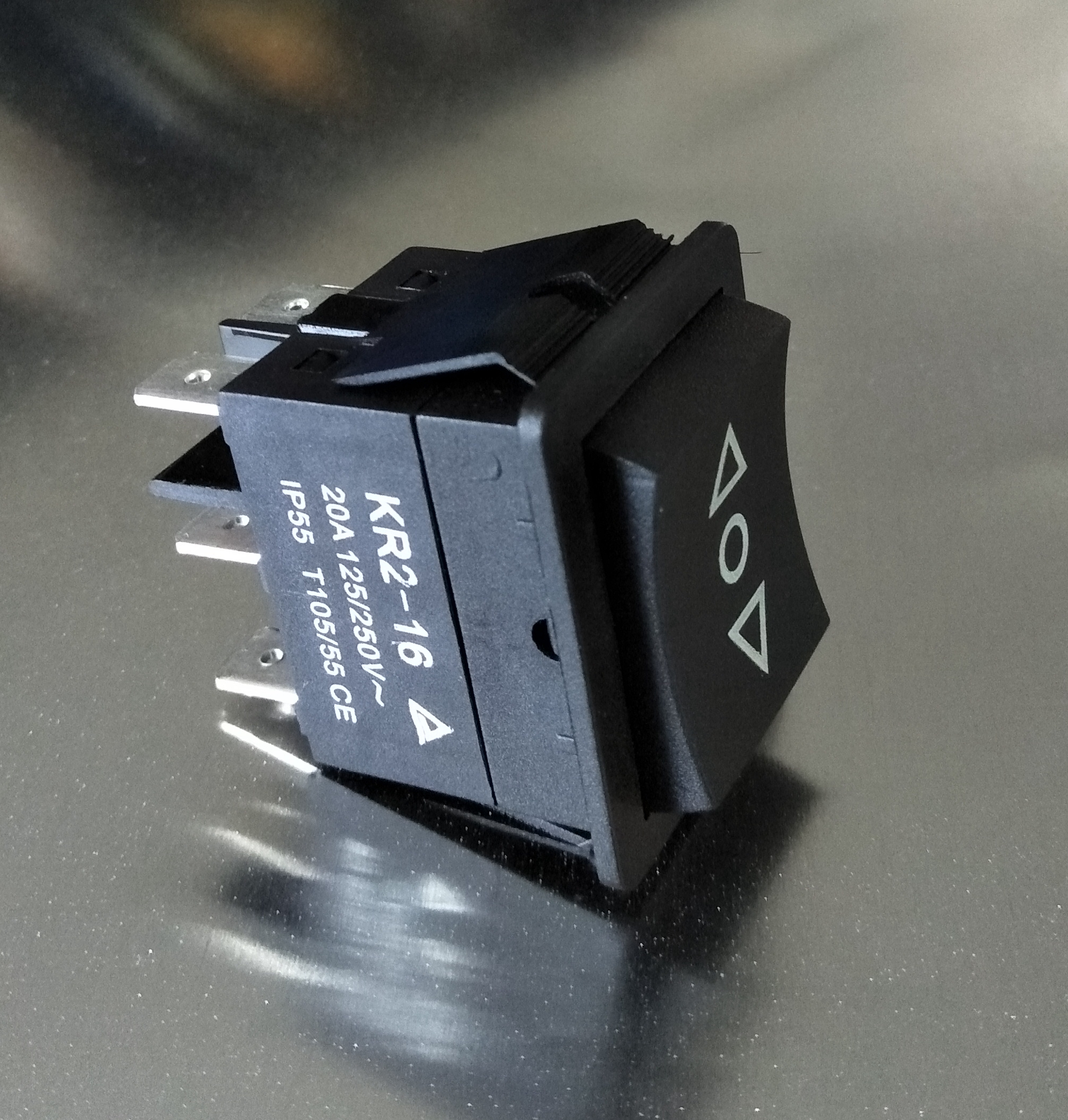

QQ图片20180627143725

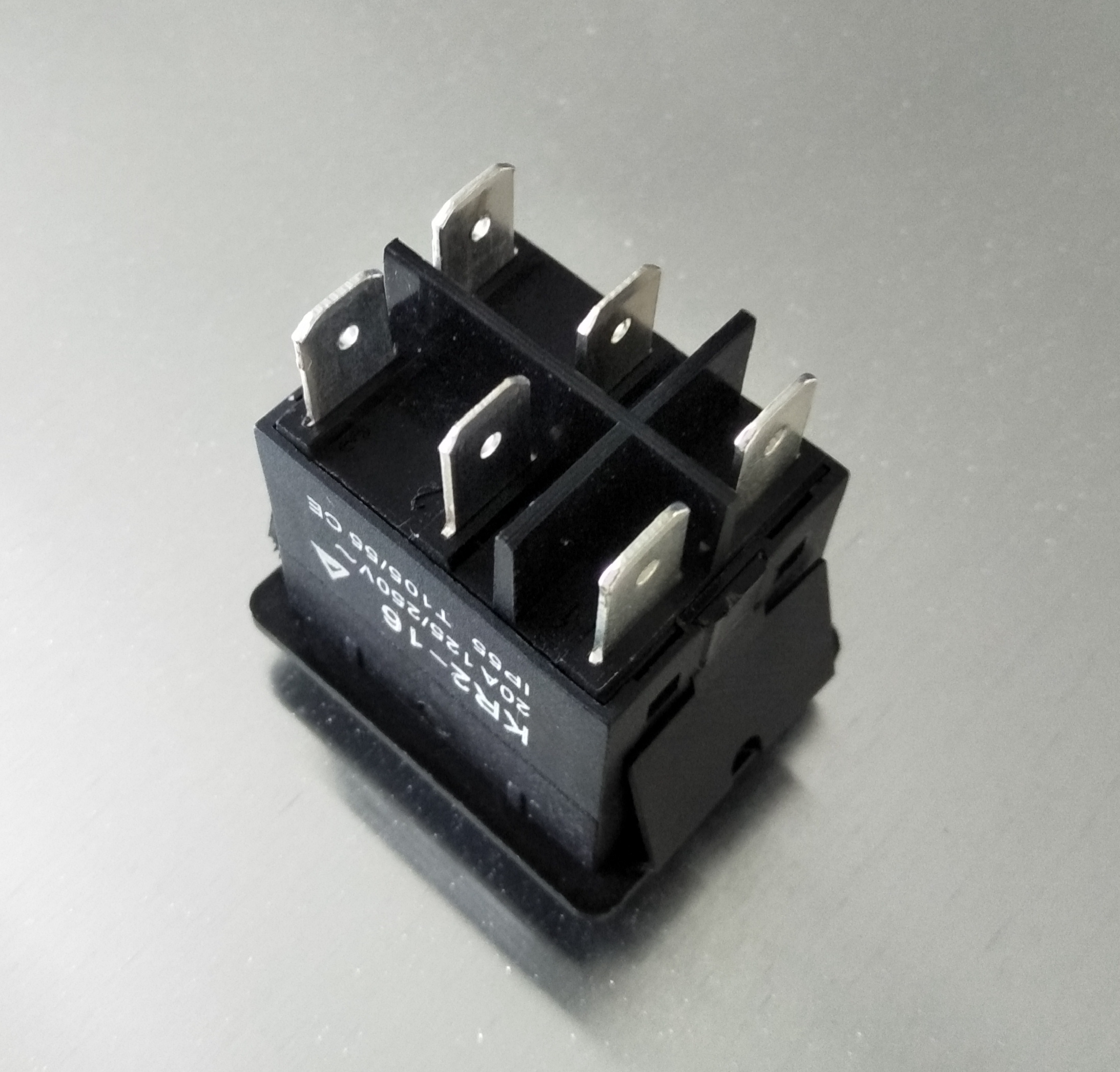

QQ图片20180627143740

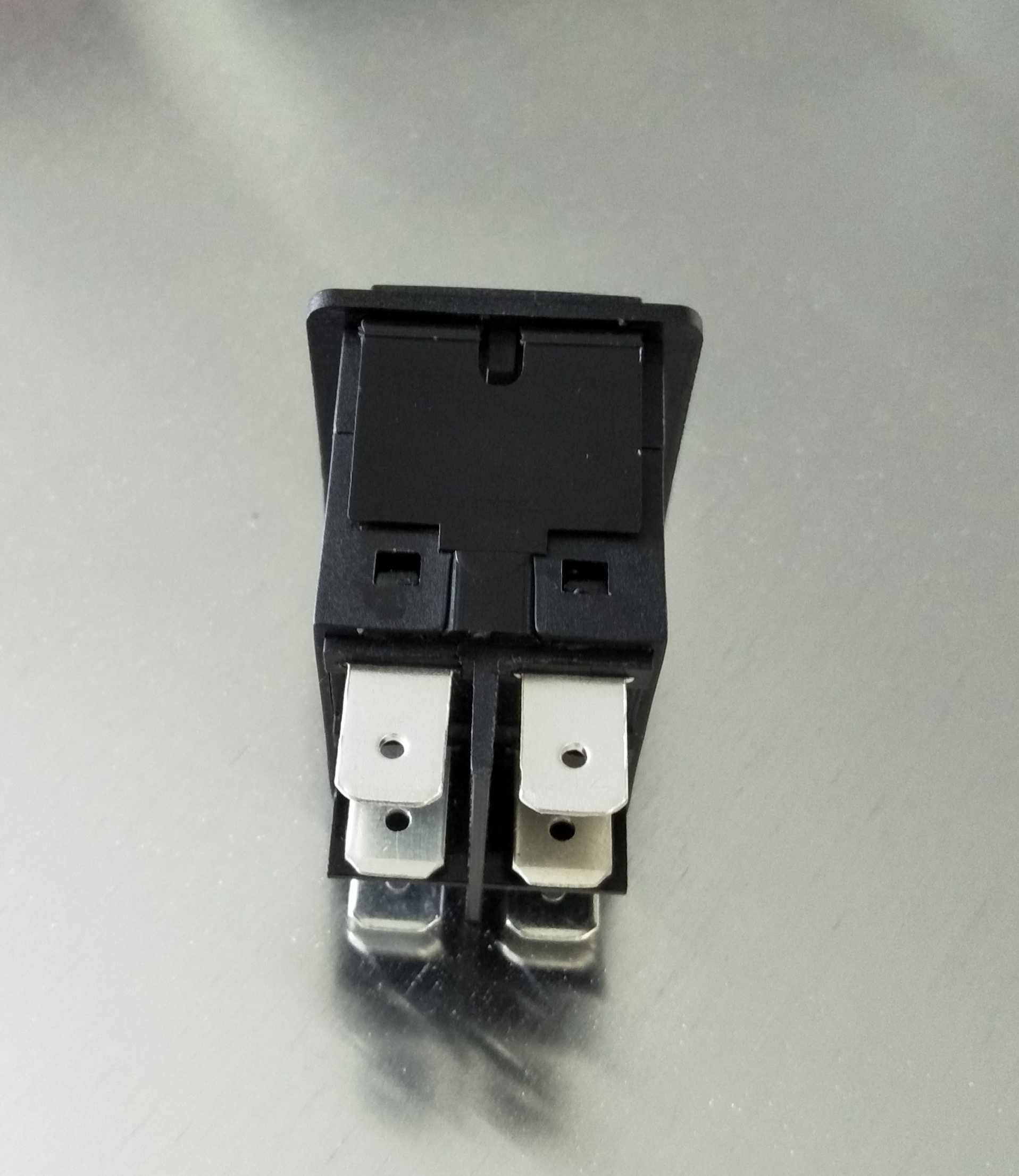

QQ图片20180627143719
